The ray dashboard, worker and head must only be available from inside your kubeflow user namespace
Reenable the istio sidecar for the ray head and worker in the user namespace and provide the corresponding Istio Authorizationpolicies. We can keep the istio sidecar for the deployment kuberay-operator in the namespace kubeflow, since it does NOT use a webhook, but something else to reconcile rayclusters. This means we also do not need a networkpolicy for the ray operator.

Credit: This manifest refers a lot to the engineering blog "Building a Machine Learning Platform with Kubeflow and Ray on Google Kubernetes Engine" from Google Cloud.

Ray

Ray is a unified framework for scaling AI and Python applications. Ray consists of a core distributed runtime and a toolkit of libraries (Ray AIR) for simplifying ML compute.

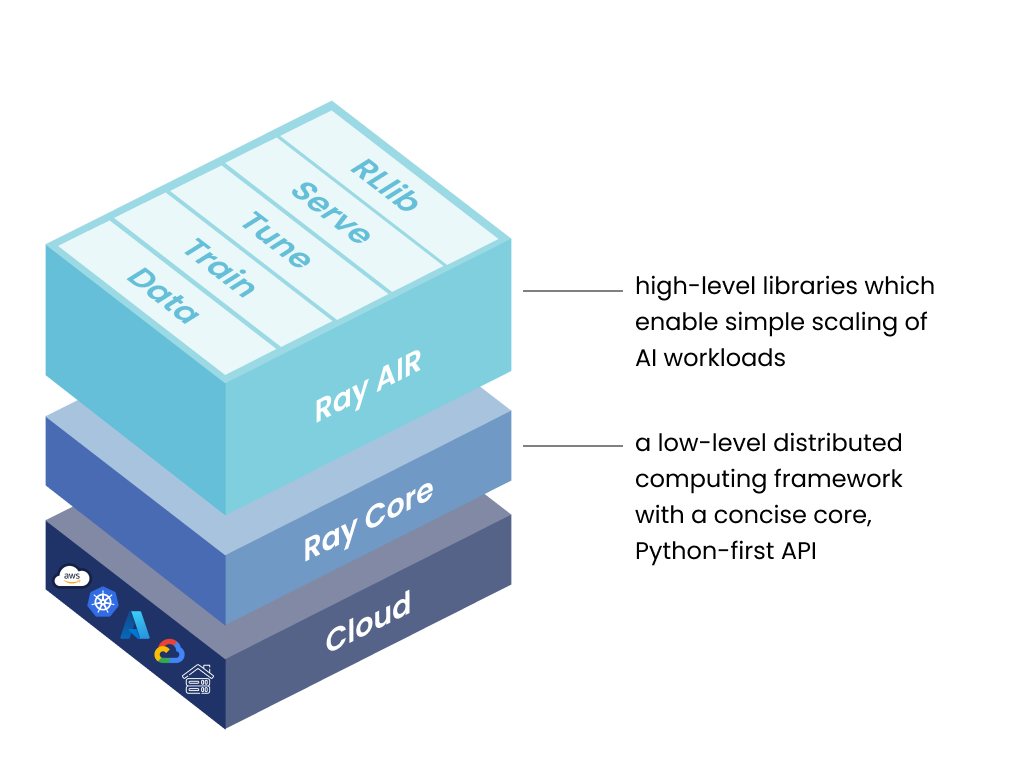

Stack of Ray libraries - unified toolkit for ML workloads. (ref: https://docs.ray.io/en/latest/ray-overview/index.html)

KubeRay

KubeRay is an open-source Kubernetes operator for Ray. It provides several CRDs to simplify managing Ray clusters on Kubernetes. We will integrate Kubeflow and KubeRay in this document.

Requirements

Dependencies
- kustomize: v5.2.1+ (Kubeflow manifest is sensitive to kustomize version.)
- Kubernetes: v1.29+
Computing resources:
- 16GB RAM
- 8 CPUs

Example

ray/kubeflow integration — Note: (1) Kubeflow Central Dashboard will be renamed to workbench in the future. (2) Kubeflow Pipeline (KFP) is an important component of Kubeflow, but it is not included in this example.

Step 1: Install Kubeflow v1.7-branch

This example installs Kubeflow with the v1.9-branch.
Install all Kubeflow official components and all common services using one command.
- If you do not want to install all components, you can comment out KNative, Katib, Tensorboards Controller, Tensorboard Web App, Training Operator, and KServe from example/kustomization.yaml.

Step 2: Install KubeRay operator

We never ever break Kubernetes standards and do not use the "default" namespace, but a proper one, in our case "kubeflow" for the ray operator.

# Install a KubeRay operator and custom resource definitions.
kustomize build kuberay-operator/overlays/kubeflow | kubectl apply --server-side -f -

# Check KubeRay operator
kubectl get pod -l app.kubernetes.io/component=kuberay-operator -n kubeflow
# NAME                                READY   STATUS    RESTARTS   AGE
# kuberay-operator-5b8cd69758-rkpvh   1/1     Running   0          6m23s

Step 3: Install RayCluster

# Create a RayCluster CR, and the KubeRay operator will reconcile a Ray cluster
# with 1 head Pod and 1 worker Pod.
# $MY_KUBEFLOW_USER_NAMESPACE is a proper Kubeflow user namespace with istio sidecar injection and never ever the wrong "default"
export MY_KUBEFLOW_USER_NAMESPACE=development
kubectl apply -f raycluster_example.yaml -n $MY_KUBEFLOW_USER_NAMESPACE

# Check RayCluster
kubectl get pod -l ray.io/cluster=kubeflow-raycluster -n $MY_KUBEFLOW_USER_NAMESPACE
# NAME                                           READY   STATUS    RESTARTS   AGE
# kubeflow-raycluster-head-p6dpk                 1/1     Running   0          70s
# kubeflow-raycluster-worker-small-group-l7j6c   1/1     Running   0          70s

raycluster_example.yaml uses rayproject/ray:2.23.0-py311-cpu as its OCI image. Ray is very sensitive to the Python versions and Ray versions between the server (RayCluster) and client (JupyterLab) sides. This image uses:
- Python 3.11
- Ray 2.23.0

Step 4: Forward the port of Istio's Ingress-Gateway

Follow the instructions to forward the port of Istio's Ingress-Gateway and log in to Kubeflow Central Dashboard.

Step 5: Create a JupyterLab via Kubeflow Central Dashboard

Click "Notebooks" icon in the left panel.
Click "New Notebook"
Select kubeflownotebookswg/jupyter-scipy:v1.9.0 as OCI image (or any other with the same python version)
Click "Launch"
Click "CONNECT" to connect into the JupyterLab instance.

Step 6: Use Ray client in the JupyterLab to connect to the RayCluster

As I mentioned in Step 3, Ray is very sensitive to the Python versions and Ray versions between the server (RayCluster) and client (JupyterLab) sides.

# Check Python version. The version's MAJOR and MINOR should match with RayCluster (i.e. Python 3.11.9)
python --version
# Python 3.11.9
pip install -U ray[default]==2.23.0

Connect to RayCluster via Ray client.

# Open a new .ipynb page.

import ray
# For other namespaces use ray://${RAYCLUSTER_HEAD_SVC}.${NAMESPACE}.svc.cluster.local:${RAY_CLIENT_PORT}
# But we use of course our per namespace ray cluster to have multi-tenancy and
# We never ever use "default" as namespace since this would violate Kubernetes standards
ray.init(address="ray://kubeflow-raycluster-head-svc:10001")
print(ray.cluster_resources())
# {'node:10.244.0.41': 1.0, 'memory': 3000000000.0, 'node:10.244.0.40': 1.0, 'object_store_memory': 805386239.0, 'CPU': 2.0}

# Try Ray task

@ray.remote def f(x): return x * x

futures = [f.remote(i) for i in range(4)] print(ray.get(futures)) # [0, 1, 4, 9]

Try Ray actor

@ray.remote class Counter(object): def init(self): self.n = 0

def increment(self):
    self.n += 1

def read(self):
    return self.n

counters = [Counter.remote() for i in range(4)] [c.increment.remote() for c in counters] futures = [c.read.remote() for c in counters] print(ray.get(futures)) # [1, 1, 1, 1] ```

Upgrading

See UPGRADE.md for more details.
