Ray

Ray is a unified framework for scaling AI and Python applications. Ray consists of a core distributed runtime and a toolkit of libraries (Ray AIR) for simplifying ML compute.

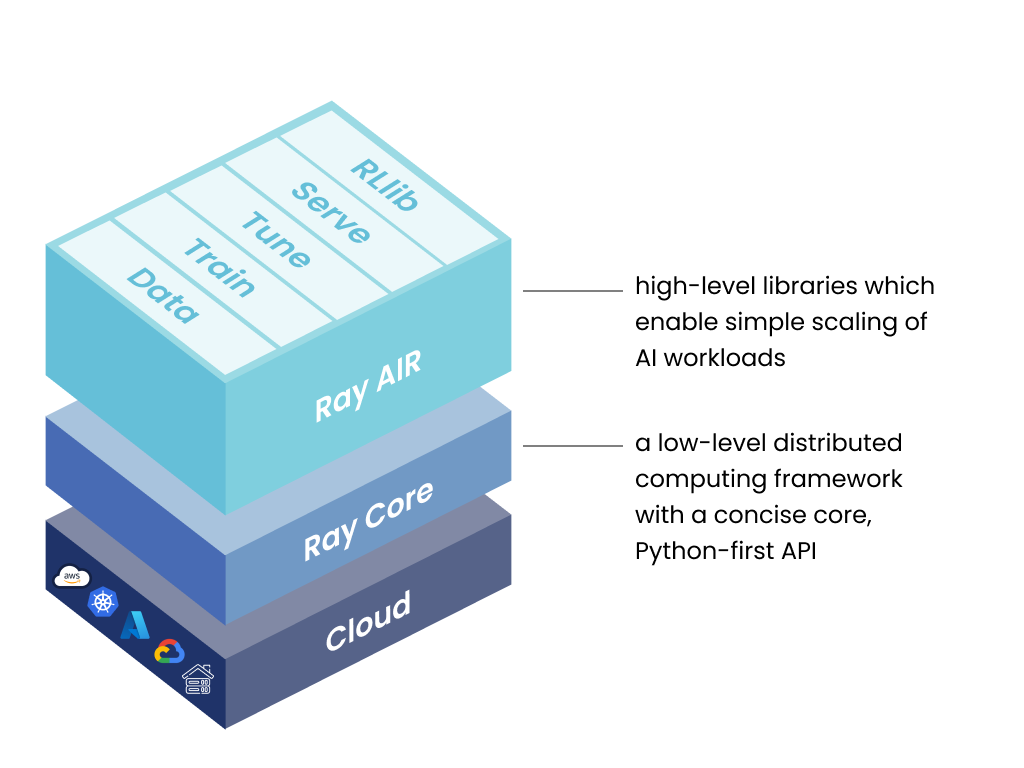

Stack of Ray libraries - unified toolkit for ML workloads. (ref: https://docs.ray.io/en/latest/ray-overview/index.html)

KubeRay

KubeRay is an open-source Kubernetes operator for Ray. It provides several CRDs to simplify managing Ray clusters on Kubernetes. We will integrate Kubeflow and KubeRay in this document.

Requirements

• Dependencies

  • kustomize: v5.4.3+ (Kubeflow manifest is sensitive to kustomize version.)
  • Kubernetes: v1.32+

• Computing resources:

  • 16GB RAM
  • 8 CPUs

Example

Note: (1) Kubeflow Central Dashboard will be renamed to workbench in the future. (2) Kubeflow Pipeline (KFP) is an important component of Kubeflow, but it is not included in this example.

Step 1: Install Kubeflow

• This example installs Kubeflow with the master branch
• Install all Kubeflow official components and all common services using one command.
• If you do not want to install all components, you can comment out KNative, Katib, Tensorboards Controller, Tensorboard Web App, Training Operator, and KServe from example/kustomization.yaml.

Step 2: Install KubeRay operator

We never ever break Kubernetes standards and do not use the "default" namespace, but a proper one, in our case "kubeflow" for the ray operator.

# Install a KubeRay operator and custom resource definitions.
kustomize build kuberay-operator/overlays/kubeflow | kubectl apply --server-side -f -

# Check KubeRay operator
kubectl get pod -l app.kubernetes.io/component=kuberay-operator -n kubeflow
# NAME                                READY   STATUS    RESTARTS   AGE
# kuberay-operator-5b8cd69758-rkpvh   1/1     Running   0          6m23s

If you are creating a new namespace other than the kubeflow-user-example-com please follow below step otherwise skip the step.

Step 3: Create a namespace

# Create a namespace: example-"development"
kubectl create ns development

# Enable istio-injection for the namespace
kubectl label namespace development istio-injection=enabled

# After creating the namespace, You have to do below mentioned changes in raycluster_example.yaml file(Required changes are also mentioned as comments in yaml file itself)

# 01. Replace the namesapce of AuthorizationPolicy principal

    principals:
    - "cluster.local/ns/development/sa/default-editor"

# 02. Replace the namespace of node-ip-address of headGroupSpec and workerGroupSpec

    node-ip-address: $(hostname -I | tr -d ' ' | sed 's/\./-/g').raycluster-istio-headless-svc.development.svc.cluster.local

Step 4: Install RayCluster

# Create a RayCluster CR, and the KubeRay operator will reconcile a Ray cluster
# with 1 head Pod and 1 worker Pod.
# $MY_KUBEFLOW_USER_NAMESPACE is the namespace that has been created in the above step.
export MY_KUBEFLOW_USER_NAMESPACE=development
kubectl apply -f raycluster_example.yaml -n $MY_KUBEFLOW_USER_NAMESPACE

# Check RayCluster
kubectl get pod -l ray.io/cluster=kubeflow-raycluster -n $MY_KUBEFLOW_USER_NAMESPACE
# NAME                                           READY   STATUS    RESTARTS   AGE
# kubeflow-raycluster-head-p6dpk                 1/1     Running   0          70s
# kubeflow-raycluster-worker-small-group-l7j6c   1/1     Running   0          70s

#Check Raycluster headless service
kubectl get svc -n $MY_KUBEFLOW_USER_NAMESPACE

• raycluster_example.yaml uses rayproject/ray:2.23.0-py311-cpu as its OCI image. Ray is very sensitive to the Python versions and Ray versions between the server (RayCluster) and client (JupyterLab) sides. This image uses:
  • Python 3.11
  • Ray 2.23.0

Step 5: Forward the port of Istio's Ingress-Gateway

• Follow the instructions to forward the port of Istio's Ingress-Gateway and log in to Kubeflow Central Dashboard.

Step 6: Create a JupyterLab via Kubeflow Central Dashboard

• Click "Notebooks" icon in the left panel.
• Click "New Notebook"
• Select kubeflownotebookswg/jupyter-scipy:v1.9.2 as OCI image (or any other with the same python version)
• Click "Launch"
• Click "CONNECT" to connect into the JupyterLab instance.

Step 7: Use Ray client in the JupyterLab to connect to the RayCluster

• As I mentioned in Step 3, Ray is very sensitive to the Python versions and Ray versions between the server (RayCluster) and client (JupyterLab) sides.

  # Check Python version. The version's MAJOR and MINOR should match with RayCluster (i.e. Python 3.11.9)
  python --version
  # Python 3.11.9
  pip install -U ray[default]==2.23.0


• Connect to RayCluster via Ray client.

  # Open a new .ipynb page.

  import ray
  # For other namespaces use ray://${RAYCLUSTER_HEAD_SVC}.${NAMESPACE}.svc.cluster.local:${RAY_CLIENT_PORT}
  # But we use of course our per namespace ray cluster to have multi-tenancy and
  # We never ever use "default" as namespace since this would violate Kubernetes standards
  ray.init(address="ray://kubeflow-raycluster-head-svc:10001")
  print(ray.cluster_resources())
  # {'node:10.244.0.41': 1.0, 'memory': 3000000000.0, 'node:10.244.0.40': 1.0, 'object_store_memory': 805386239.0, 'CPU': 2.0}

  # Try Ray task
  @ray.remote
  def f(x):
      return x * x

  futures = [f.remote(i) for i in range(4)]
  print(ray.get(futures)) # [0, 1, 4, 9]

  # Try Ray actor
  @ray.remote
  class Counter(object):
      def __init__(self):
          self.n = 0

      def increment(self):
          self.n += 1

      def read(self):
          return self.n

  counters = [Counter.remote() for i in range(4)]
  [c.increment.remote() for c in counters]
  futures = [c.read.remote() for c in counters]
  print(ray.get(futures)) # [1, 1, 1, 1]


Upgrading

See UPGRADE.md for more details.
